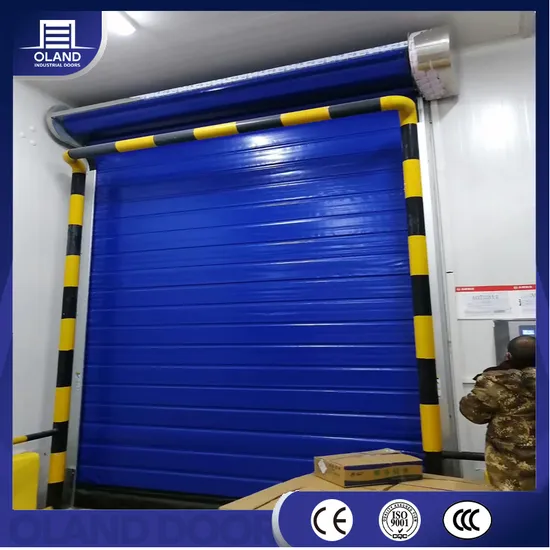

Cold Room Freezer PVC Fabric Roller Shutter Low Thermal Insulated Automatic Rapid Industrial Fast Roll up Storage High Speed Door for Critical Temperature Area

• Overview
• Product Description
• Structure Diagram
• Product Details
• Company Profile

Overview

Basic Info.

Model NO.	Cold storage high speed door
Material	PVC Fabric+Rock Wool
Type	Rolling
Open Style	Rolling
Opening Type	With Remote Control
Special Function	Thermal Insulated
Color	Customized
Certification	ISO9001, CE
Position	Industrial
Surface Finishing	Finished
Working Temperature	≥0ºC
Transport Package	Wooden Box
Specification	Customized
Trademark	OLAND
Origin	China
Production Capacity	5000 Sets/Year

Packaging & Delivery

Package Size2000.00cm * 300.00cm * 600.00cm Package Gross Weight1000.000kg

Product Description

Product DescriptionDesigned for cold chain warehousing and constant temperature environment, the cold storage fast door adopts double-layer 1.0mm thick high-strength PVC curtains, with optional heat insulation layer in the middle, which effectively reduces the exchange of heat and cold and enhances the energy efficiency. The door body runs smoothly at high speed, with high-quality sealing system and low-temperature-resistant motor to ensure reliable opening and closing in low temperature and high humidity environment. Suitable for fresh food processing, food refrigeration, pharmaceutical warehousing and other places with high requirements for temperature control and frequent passage, it is an ideal solution to ensure product freshness and energy-saving operation.

Technical Data
Maximum size	Width 3370mm*Height4700 mm
Power supply	220±10%V, 50/60Hz.0utput power 0.75-1.5KW
Max speed	open 2.0m/s, close 1.0m/s
Normal speed	open1.2m/s, close 0.6m/s
Protection level of electric	IP65
Control system	Servo type
Driving system	Servo motor
Wind resistance	Beaufort scale8(25m/s)
K-Value	0.4W/m²·K
Working temperature	≥0℃
Color	Yellow, blue, light grey

Structure Diagram

OLAND standard version of the cold storage high speed door structure and accessories, if there are other needs please talk to our salesman, can be customized for you.Product Details

Company Profile

Q: What is your MoQ?
A: No limit. Accept order >1set
Q: What is the delivery time?
A: About 15-30days
Q: What about your package?
A: Polywood box
Q: What kind of payment terms would you accept?
A: Usually we accept T/T, LC, Western Union, Credit Card etc. lf you prefer otherpayment terms, please feel free to discuss with us.
Q: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to us. Let's cooperate.
Q: How can i know the price exactly?
A: Please give the exactly size and quantity of your required door. We can give you adetail quotation based on your requirements.
Q: ls it difficult to install your door?
A: Easy to install. We have manual book and installation video for your reference.We also provide support for training your staff in our factory or let our engineer go toyour city provide techinical support.
Q: Do you produce other products?
A: We produce sectional garage door, industrial door, roll shutter door, high speed door.hangar door etc.We had export since 2003 year, we have cooperated with Low'es,RONA etc.Had designed and produced for Maldives airport, Mongolia airport, Nepal airport, Incheon airport, Romania airport etc.
